This Specialty family provides unique filaments from Polymaker to unlock new 3D printing applications.

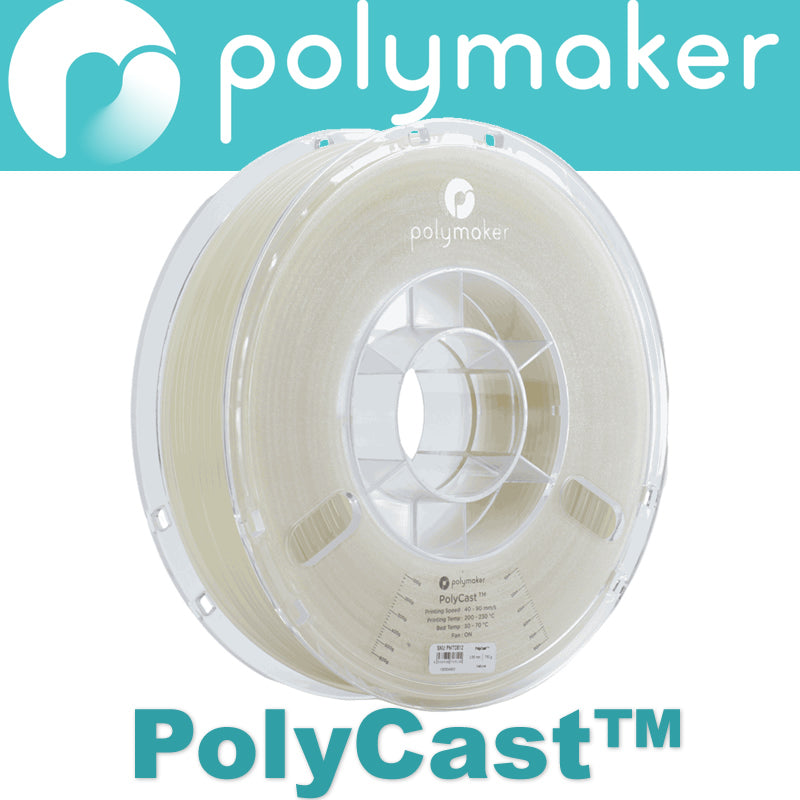

PolyCast™ is a filament designed to produce investment patterns for investment casting applications. 3D printing significantly cuts down both the cost and lead time by eliminating the tooling process.
PolyCast™ features Polymaker's Layer-Free™ technology and Polymaker's Ash-Free™ technology:
Layer-Free™ technology involves exposing a 3D printed part to an aerosol of micro-sized alcohol droplets, generated by a rapidly vibrating, perforated membrane called the nebulizer. The aerosol will then be adsorbed by the surface of the 3D printed part and render it smooth and layer-free.
Ash-Free™ technology allows Polymaker’s filament which has been designed for investment casting to burn off cleanly without any residue, enabling defect-free metal parts. 3D printing has been used to produce investment casting patterns as it cuts down both the cost and lead time for small-volume production runs.
1745 ± 151 Mpa
37.5 ± 1.7 Mpa
60.2 ± 1.6 Mpa
Charpy Impact Strength:
9.6 ± 0.9 kJ/m2
Glass Transition Temperature:
Vicat Softening Temperature:
||NET WEIGHT: 0.75 KG (1.65 LB)
|190°C - 220°C
40mm/s – 60mm/s
25˚C – 70˚C
Glass with glue, blue tape
60˚C for 12h
It is highly recommended to use a dry box when printing with PolyCast™ and to store it in the resealable bag.
